Protection tube
Construction Closed-end tube, diameter 9mm
Material SS 316 - (Wst 1.4401)Insertion
length "L" Customer to specify
Process connection 1 / 2" BSP
Connection head
Model "B", according DIN 43729
Material Cast aluminium
Cable entry M20 x 1.5 cable gland
Sensing element
Type MI 1025
Construction Replaceable springloaded
Diameter 6 mm
Length "E" E = L + 45 mm
Material SS 316 - (Wst 1.4401)
Element
Calibration K, T, J, E, N, U or LFor
duplex KK, TT, JJ, EE, NN, UU or LL
Accuracy According IEC 584-1 / DIN 43710
Options
Transmitter 4-20mA In-Head Transmitter, standard or ATEX Explosion proof.

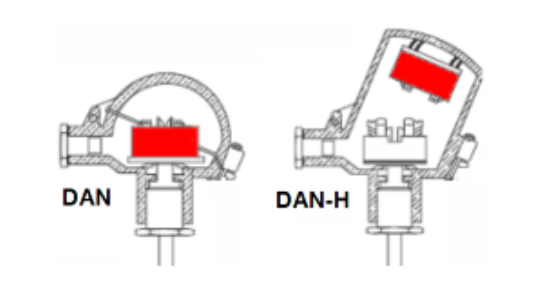

Swing-Cover head DAN. Transmitter direct mounted on measuring insert.
High Swing-Cover head DAN-H. Transmitter in cover. Insert with ceramic block..
